CE model

Output Power 6kW

Open:4 or 6 ft

19-inch Color LCD Marine Radar

MDC-7906

Basic Ranges
0.125 - 64 NM

Documentation
Manual Operation Manual Rev16
Quick Reference Rev05
Installation Manual Rev12

Features

Improvement of function

Clear image with High-speed sampling in short range.
Auto GAIN with simple operation.
Improved visibility by auto STC.
Simple and easy operation by remote tracball via USB.

TT(ARPA) function as standard

Built-in TT(ARPA) tracks up to 100 targets.
Selectable auto acquisition or manual acquisition.

AIS interface as standard

Built-in AIS interface for displaying up to 1000 targets.

Map Overlay

C-Map chart (NT MAX)* can be overlaid on the radar screen to provide clear radar pictures of coastlines, buoys, and other features. C-Map NT MAX “World Wide” back ground chart is built-in as standard.
*Owner supplied. Basic chart information only. Extra features of C-Map such as photo indication are not available.

Keyboard operation unit

The radar has a separate operation unit, providing users with a choice of installation locations.

Screen Image

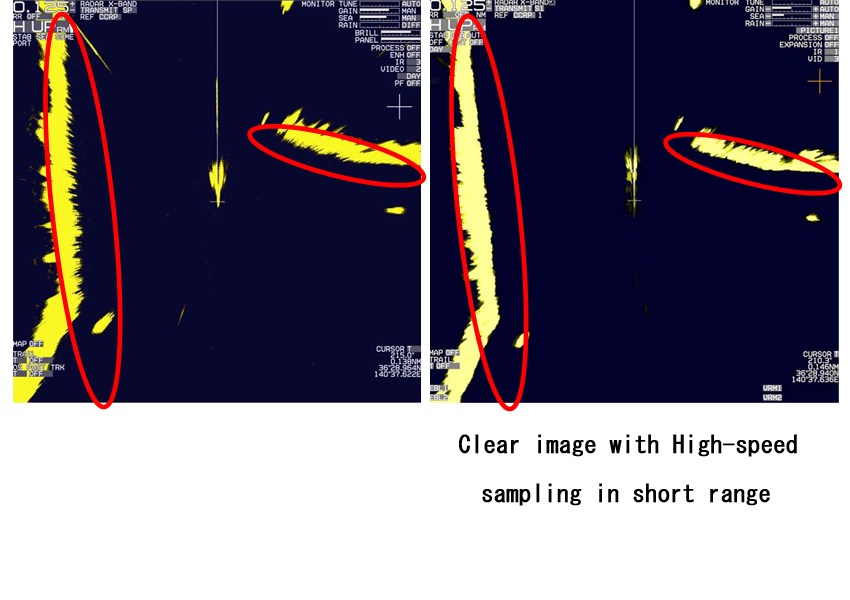

Former model New model

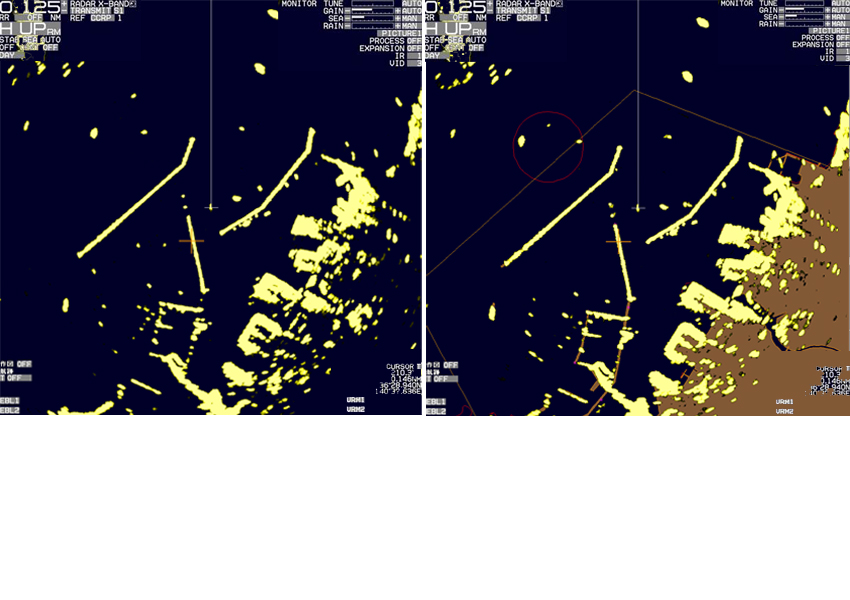

WithoutMap MapOverlay

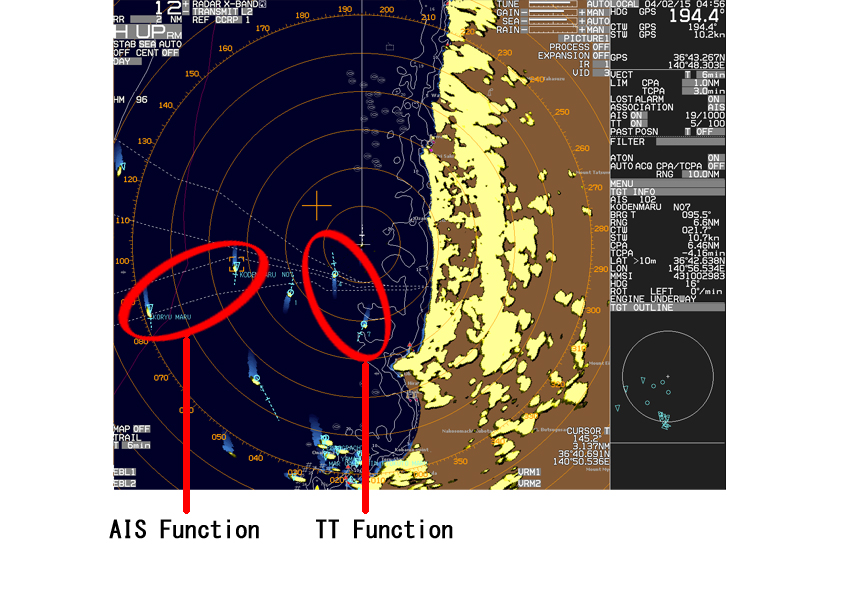

TT_AIS function

Main Specifications

MDC-79066 kW / 64 nm / 4 or 6 ft open
Dimensions374 (H) x 450 (W) x 253 (D) mm (Display unit)
141 (H) x 385 (W) x 57 (D) mm (Operation unit)
Weight13 kg (Display unit)
1.8 kg (Operation unit)
Power supply21.6 to 41.6 VDC
