Radar

Features

Powerful and precise Professional Grade

Improvement of function

Clear image with High-speed sampling in short range.
Auto GAIN with simple operation.
Improved visibility of the echoes by auto STC and CFAR.
Simple and easy operation by remote tracball via USB.

TT(ARPA) function as standard

Built-in TT(ARPA) tracks up to 100 targets.
Selectable auto acquisition or manual acquisition.

AIS interface as standard

Built-in AIS interface for displaying up to 1000 targets.

Map Overlay

C-Map chart (NT MAX)* can be overlaid on the radar screen to provide clear radar pictures of coastlines, buoys, and other features. C-Map NT MAX “World Wide” back ground chart is built-in as standard.
*Owner supplied. Basic chart information only. Extra features of C-Map such as photo indication are not available.

Keyboard operation unit

The radar has a separate operation unit, providing users with a choice of installation locations.

Black Box

MDC-5000 series Black Box radars connect to any XGA type display (owner supplied).

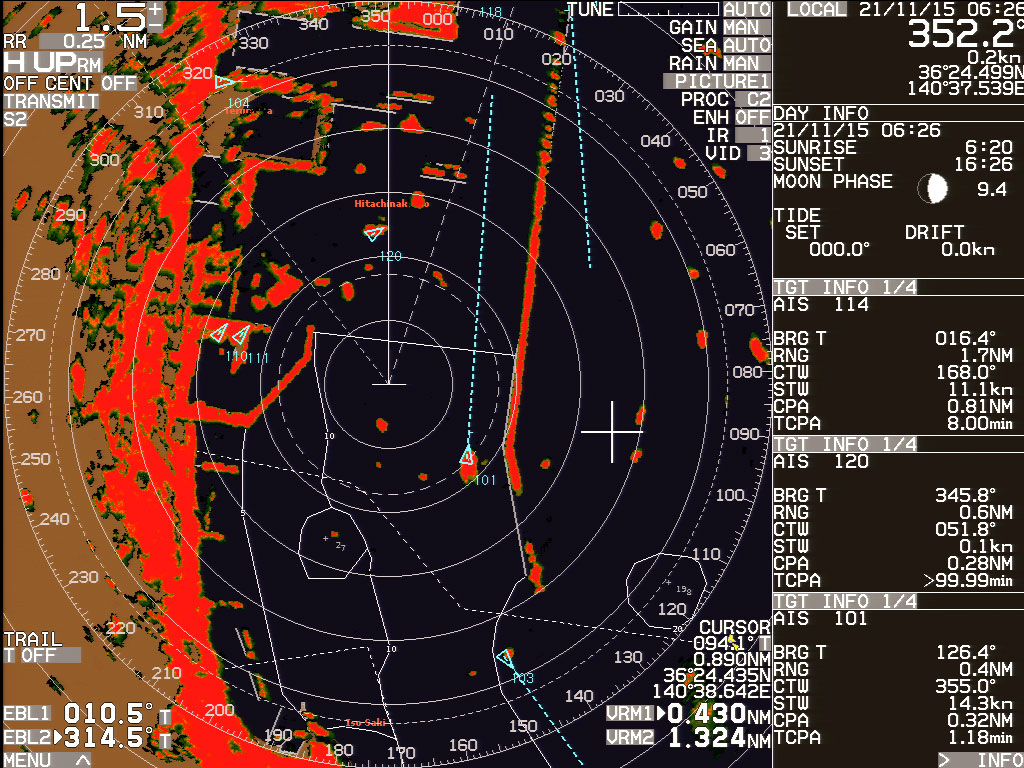

Screen Image

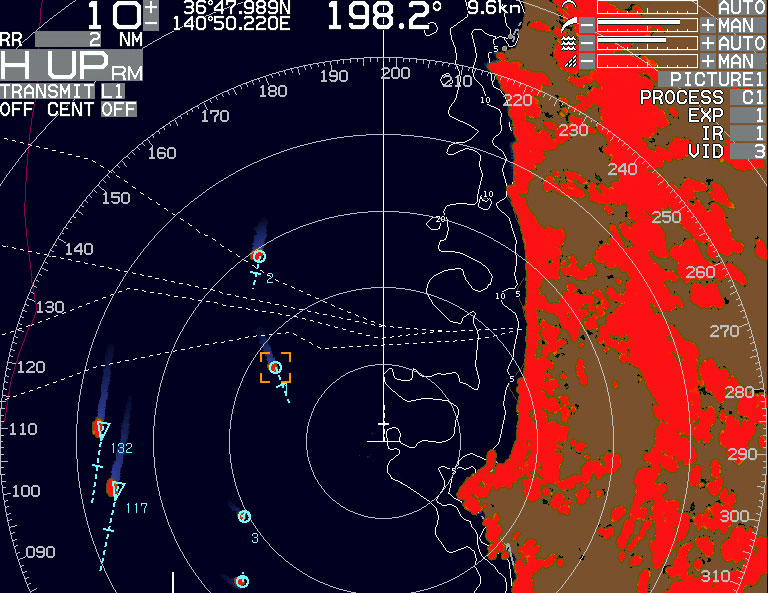

AIS+Map

TT_AIS function

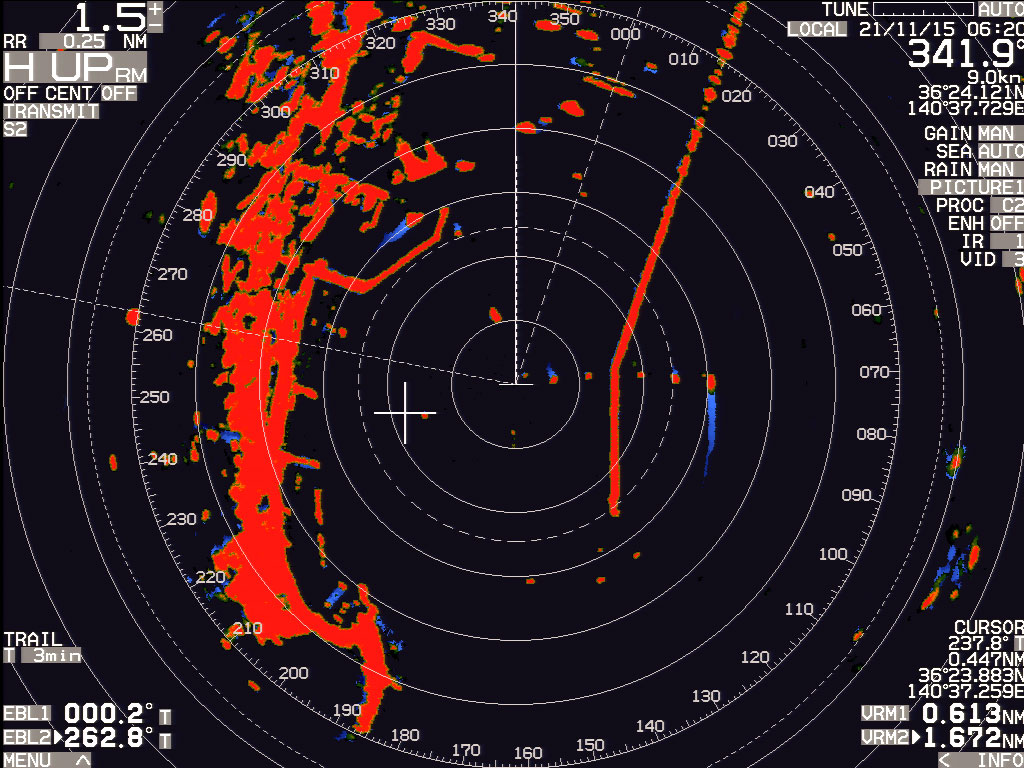

Track display

Main Specifications
