Features
World’s most sophisticated AIS Transceiver
Meets IMO standards
Meets FCC, USCG, IC, TC, CCNR (Inland AIS)
Chart display available by C-MAP MAX (on a Non-SOLAS or Inland vessel only)
Simple menu display with icons
Water and weather proof (IPX6 & IPX7)
USB Connection
An optional USB cable is available for connection to a PC or Mac.
The USB connector can be connected directly to the USB port
on the PC or Mac via the optional USB cable. To enable connection of the AIS transceiver to a PC the USB drivers, You need to download and install the driver from the link below.
Driver installation is typically not required for use with a Mac.

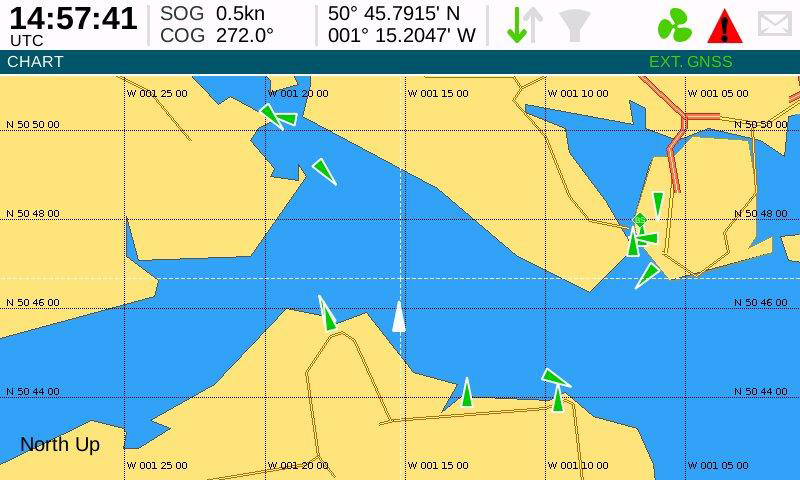

Screen Image
Main Specifications
| Output power | 1 W or 12.5 W (automatic selection) | ||
|---|---|---|---|
| Display size and type | 5 inch, color LCD with adjustable backlight | ||
| TX / RX frequency | 156.025 MHz to 162.025 MHz | ||
| Chanel bandwidth | 25 kHz | ||
| Receiver channels | 32 channels GPS and GLONASS operating modes | ||
| Frequency | L1 GPS band, 1575.42 MHz and L1 GLONASS band 1597.1 to 1609.5 MHz | ||
| Sensitivity | < -107 dBm for 20% PER (TDMA Transmitter / Receiver) -107 dBm@BER < 10-2 (DSC Receiver) | ||
| Position fixing system | EPFS | ||
| Accuracy | 2.5 m CEP / 5.0 m SEP without differential correction 2.0 m CEP / 3.0 m SEP with SBAS or RTCM DGPS correction | ||
| Power supply | 10.8V to 31.2V |
